£16.99
One of Eaglerise’s newest LED Drivers for 2021.
This unit has a 9.1w output at 700mA.
13/04/2022 – This model has now been discontinued. Eaglerise advise that the EBP012CO700CHP is an alternative model.

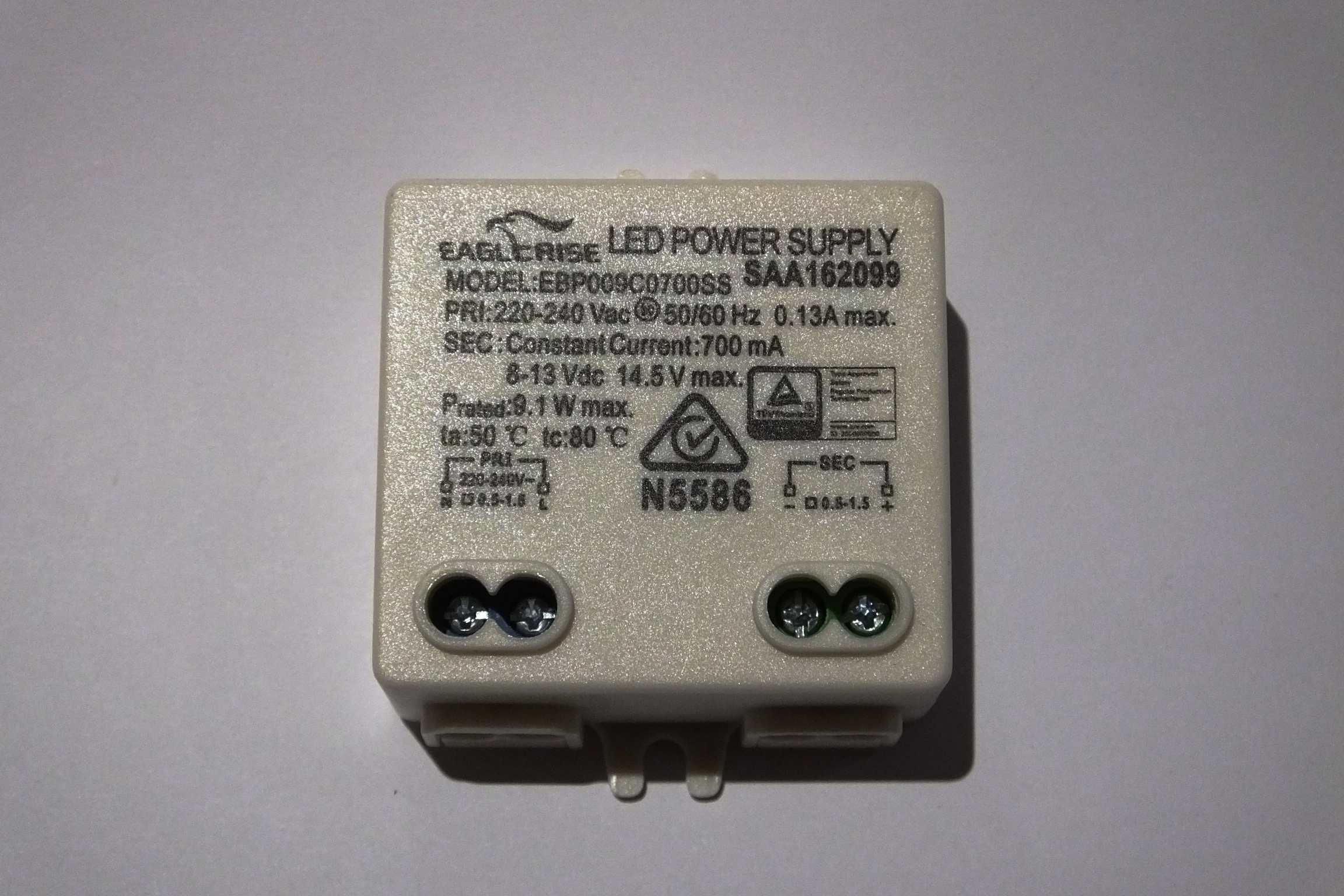

Model: EBP009C0700SS
Input voltage: 220 – 240V AC
Input current: 0.13A Frequency: 50 – 60Hz
Constant current: DC700mA 8 – 13v
Output voltage: 14.5v max
Output wattage: 9.1w
Dimmable: No
Protection class: IP20
Over temperature protection and Short circuit protection
EMC Norm: EN55015:2006, EN61547:1995+A1:2000 EN61000-3-2:2006, EN61000-3-3:1995+A1:2001+A2:2005
Safety Norm: EN61347-2-13:2006, EN61347-1:2001, EN60598-1:2004+A1:2006
LVD Norm: Low voltage Directive 2006/95/EC
Weight | 0.11 kg |
---|---|
Dimensions | 42 × 42 × 21 mm |
Condition | New |
Country Of Manufacture | China |
Maximum Wattage | 9.1w |
MPN | EBP009C0700SS |
Outputs | 1 |
Primary | 220 – 240v |
Secondary | Constant Current 8-13Vdc 14.5V max. |
