£19.99
One of Eaglerise’s newest drivers in their LED range.
The EBP018C0700CHP with an output power of 18.2w replaces the Eaglerise ELP6x3CS.
16/05/24 – This model is being discontinued by Eaglerise. The Eaglerise CS5-18C700 or the Huibolong HLV70018CB can be used as alternatives. Please check the dimensions before purchase to ensure fitment inside your light fitting.

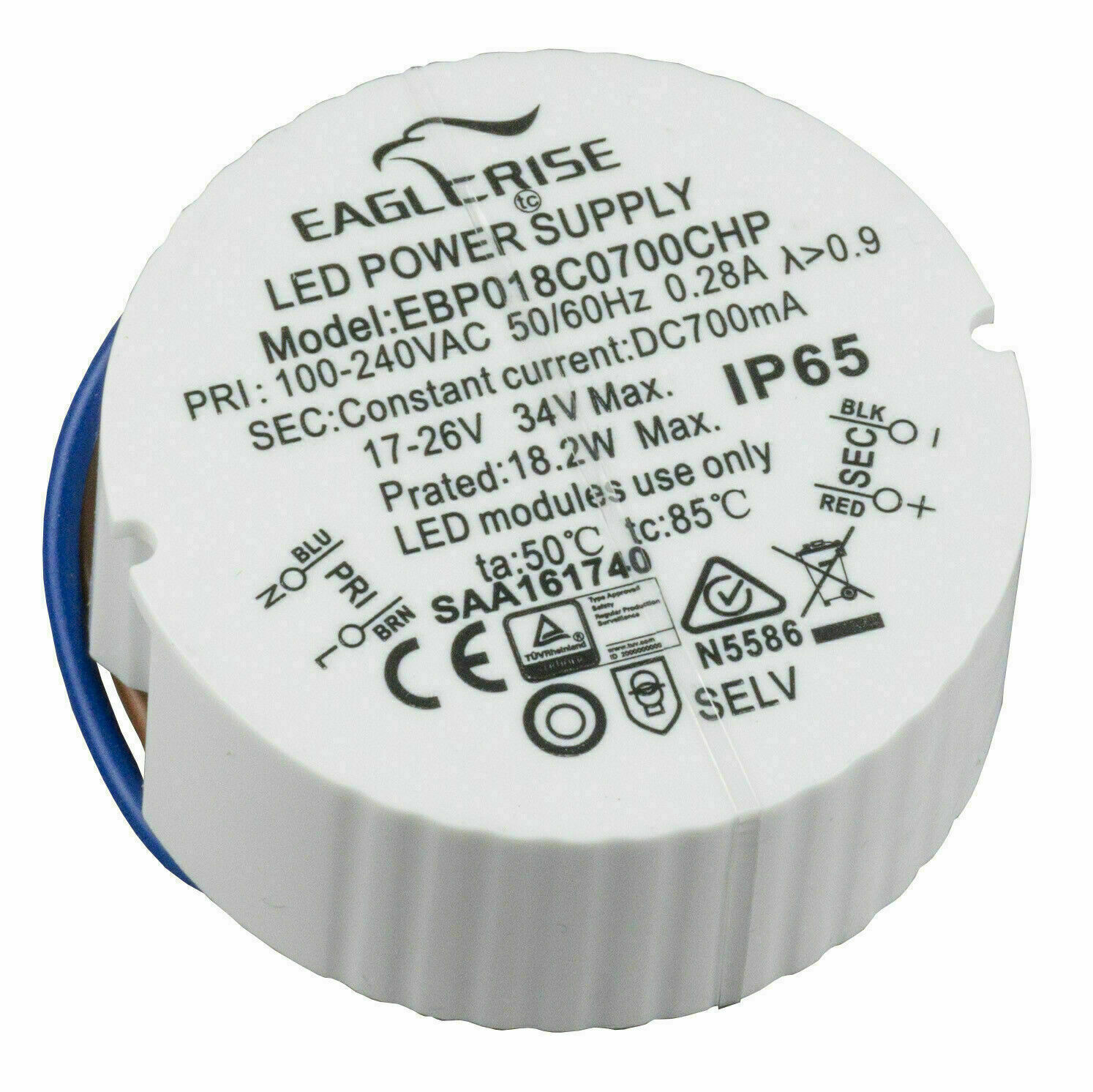

Model: EBP018C0700CHP
Input: 100-240v, 0.28A
Secondary: 700mA
Output Power: 18.2w
Output Voltage: 17-26v, 34v max
Protection Class:- IP65
Insulation Class:- II SELV
Short Circuit Protection and High Temperature Protection built in
LVD Directives:- EN61347-2-13:2006, BS EN61347-1:2001
EMC Directives:- EN55015:2006, EN61547:1995+A1:2000, EN61000-3-3:1995+A1:2001+A2:2005, EN61000-3-2:2006
Certification Mark:- Intertek, CE
Weight | 0.14 kg |
---|---|
Dimensions | 62 × 26 mm |
Condition | New |
Country Of Manufacture | China |
Maximum Wattage | 18.2w |
Minimum Wattage | 11.9w |
MPN | EBP018C0700CHP |
Outputs | 1 |
Primary | 100 – 240v |
Secondary | Constant Current DC700mA 17-26VDC |
£19.99 Original price was: £19.99.£17.49Current price is: £17.49.
