£23.99

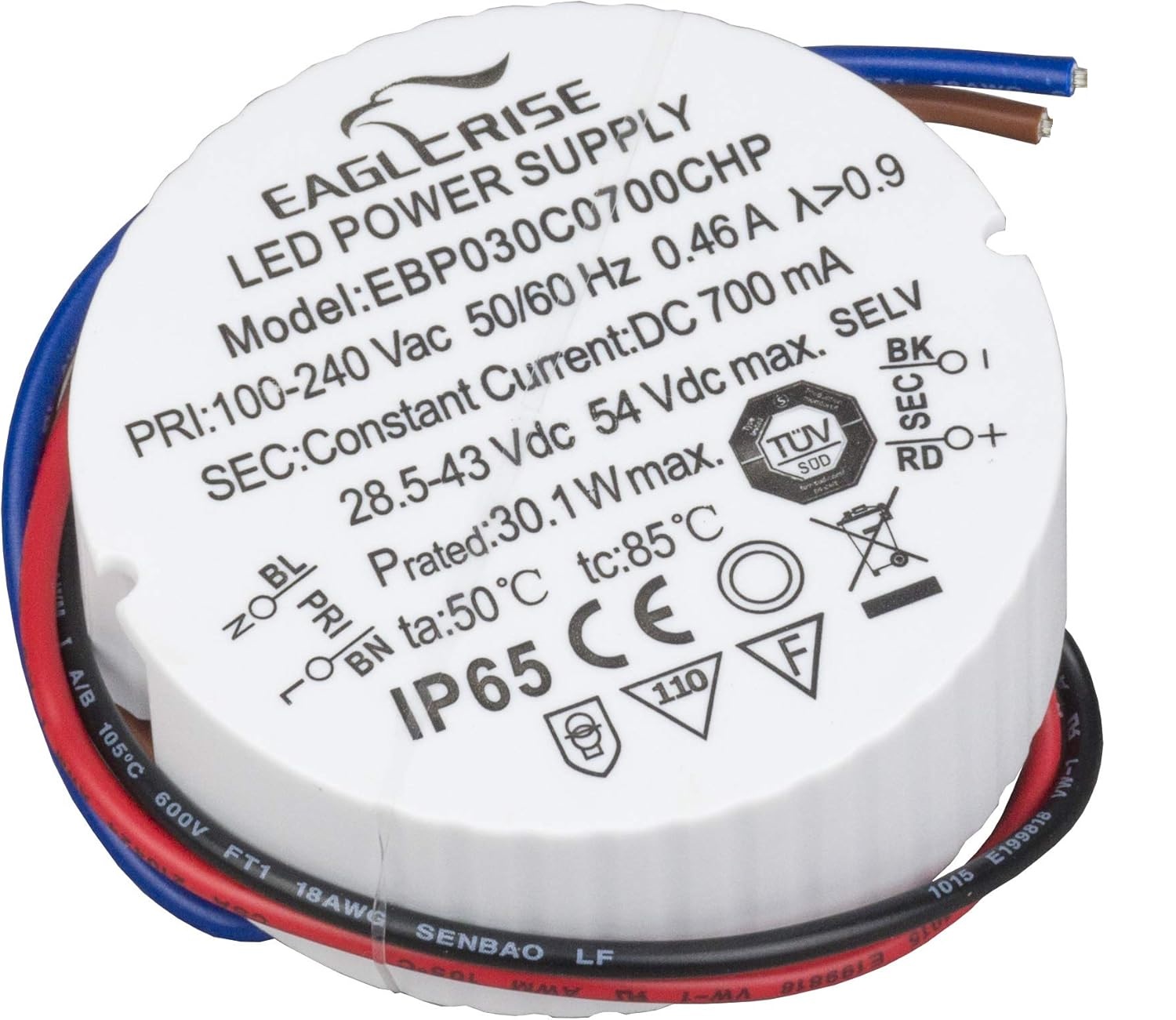

The newly released EBP030C0700CHP LED Driver from Eaglerise.
The EBP030C0700CHP has an output power of 30.1w at 700mA.
03/02/24 – This model is being discontinued and replaced with the Eaglerise CS5-30C700 with the power specifications being compatible.
Model: EBP030C0700CHP
Input: 100-240v, 0.46A
Secondary: 700mA
Output Power: 30.1w
Output Voltage: 28.5-43, 54v max
Protection Class:- IP65
Insulation Class:- II SELV
Short Circuit Protection and High Temperature Protection built in
LVD Directives:- EN61347-2-13:2006, BS EN61347-1:2001
EMC Directives:- EN55015:2006, EN61547:1995+A1:2000, EN61000-3-3:1995+A1:2001+A2:2005, EN61000-3-2:2006
Certification Mark:- Intertek, CE
Weight | 0.14 kg |
---|---|
Dimensions | 75 × 26 mm |
Condition | New |
Country Of Manufacture | China |
Maximum Wattage | 30.1w |
Minimum Wattage | 20w |
MPN | EBP030C0700CHP |
Outputs | 1 |
Primary | 100 – 240v |
Secondary | Constant current DC700mA 43VDC |
