One of Eaglerise’s newest LED drivers for 2021.
This is a NON dimmable LED driver.
500mA is an unusual powerband in the UK however it is becoming more popular with lighting manufacturers for smaller light fittings.

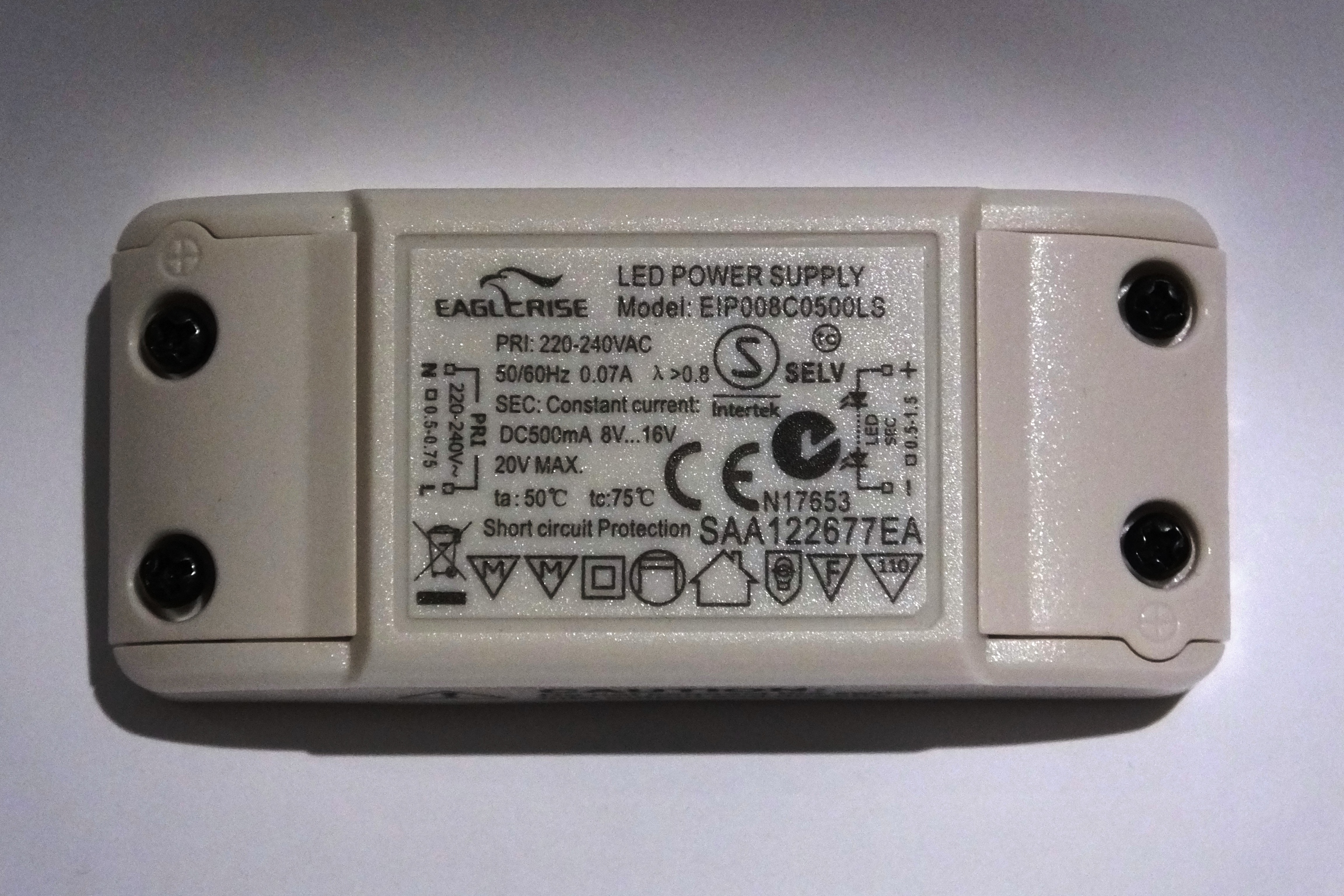

Model: EIP008C0500LS
Input: 220-240v AC
Secondary: 500mA
Output: 8w
Output voltage: 8-16v
Short Circuit / Overload / Over Voltage Protection
Certification Mark:- SEMKO CE
Protection Class:- IP20
Standards (EMC) EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-5, EN 55015, EN 61547.
Standards (LVD) EN 61347-1, EN 61347-2-13.
Weight | 0.11 kg |
---|---|
Dimensions | 88 × 39 × 22.5 mm |
Condition | New |
Country Of Manufacture | China |
Maximum Wattage | 8w |
Minimum Wattage | 4w |
MPN | EIP008C0500LS |
Outputs | 1 |
Primary | 220 – 240v |
Secondary | Constant Current DC500mA, 8-16v |
