One of Eaglerise’s newest drivers in their LED range for 2021.
Capable of 12w at 700mA.
This is a NON dimmable LED driver.
This model can replace the Huibolong HLV7018R1 LED Driver, SELF SLT-12-700IF and SLT12-700IFG and the Eaglerise EIP012C0700L2 model.
24/08/23 – This model is now discontinued. An alternative is the Huibolong HLV70012R1.

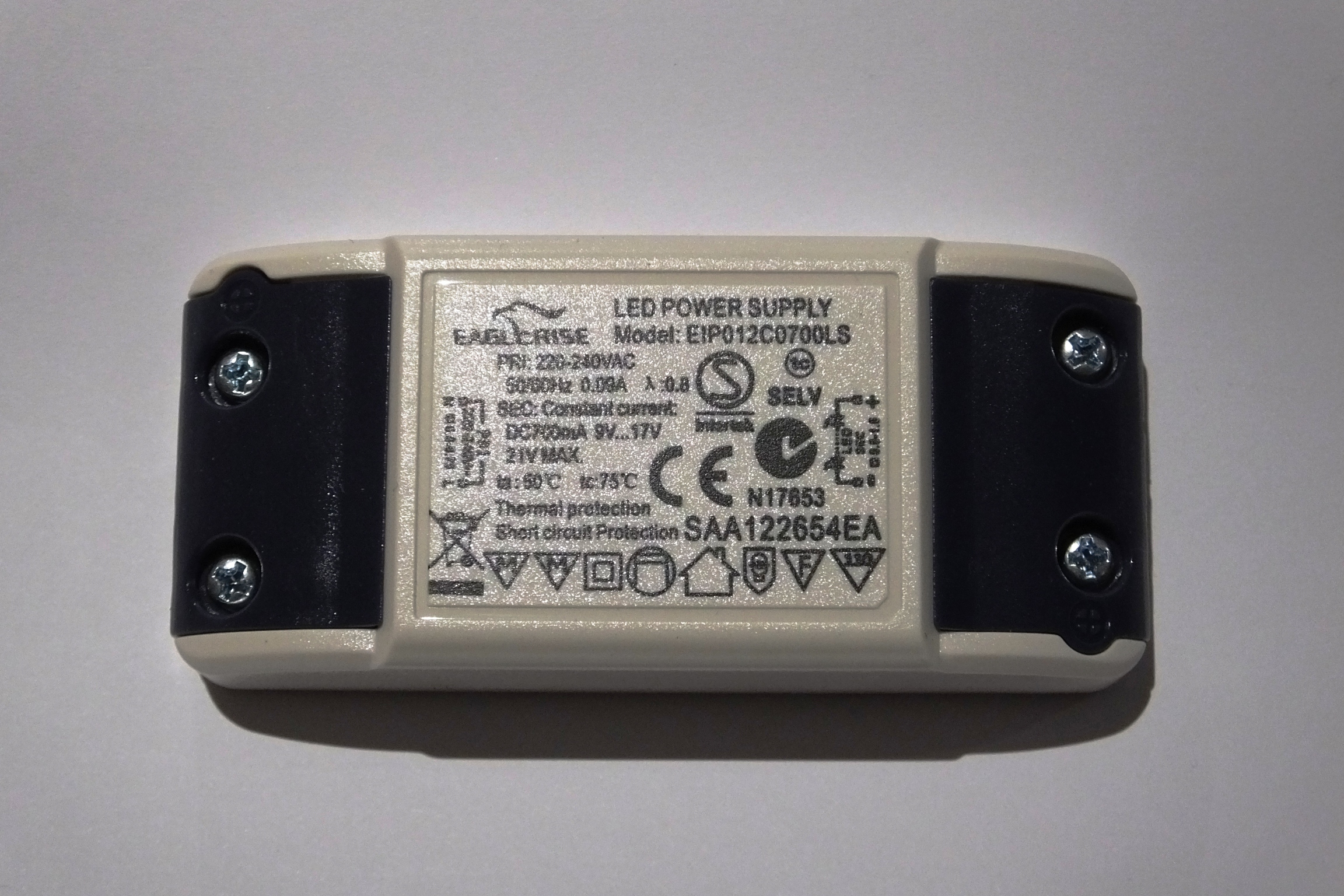

Model: EIP012C0700LS
Input: 220 – 240v
Secondary: 700mA
Output: 12w
LVD Directives:- EN61347-2-13:2006, BS EN61347-1:2001.
EMC Directives:- EN55015:2006, EN61547:1995+A1:2000, EN61000-3-3:1995+A1:2001+A2:2005, EN61000-3-2:2006.
Protection Class:- IP20
Insulation Class:- II SELV
Short Circuit Protection and High Temperature Protection built in.
Certification Mark:- CE
Weight | 0.12 kg |
---|---|
Dimensions | 87 × 38 × 22 mm |
Condition | New |
Country Of Manufacture | China |
Maximum Wattage | 12w |
MPN | EIP012C0700LS |
Outputs | 1 |
Primary | 220 – 240v |
Secondary | Constant Current DC700mA 9-17v |
