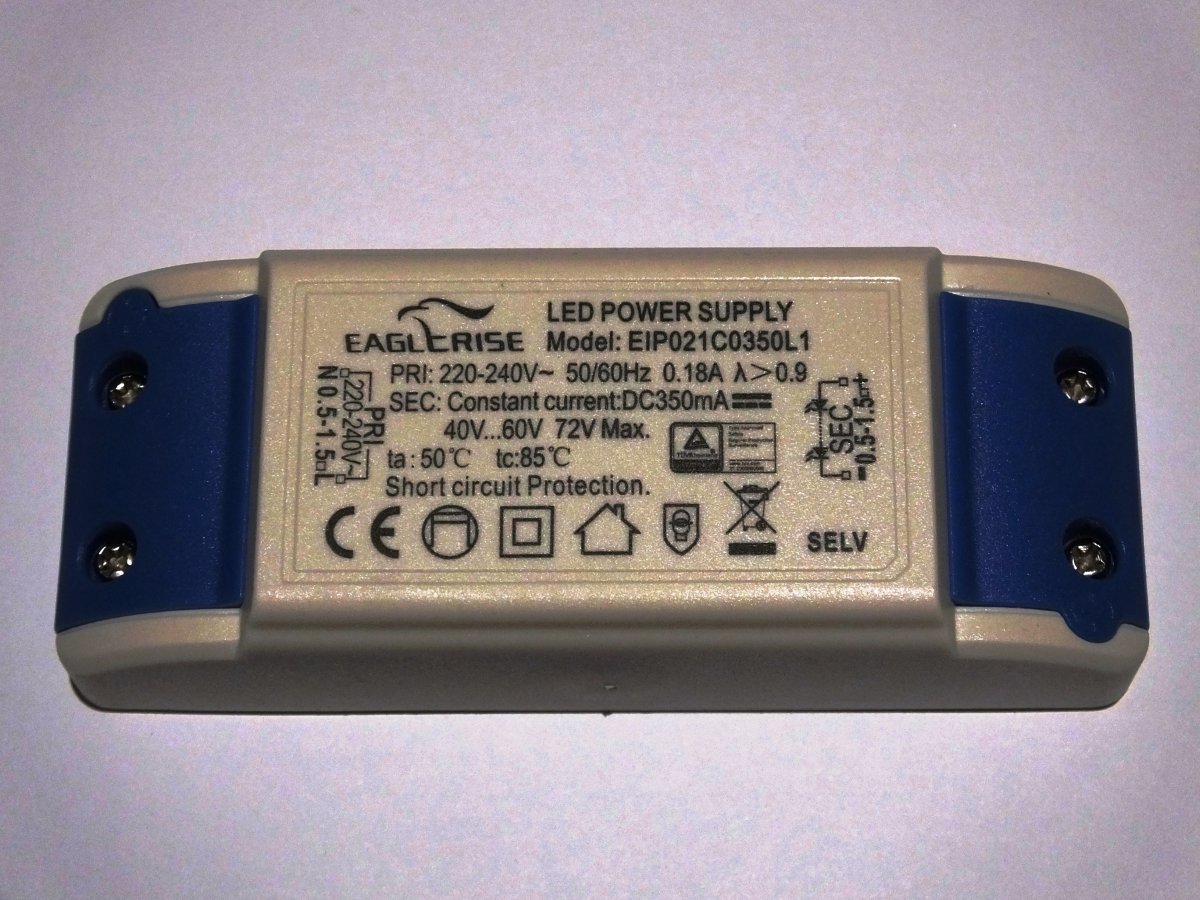

Name: EAGLERISE EIP021C0350L1 21w LED DRIVER CONSTANT CURRENT (DISCONTINUED)
SKU: EIP021C0350L1
Availability: OutOfStock

Product Information

£0.00

The EIP021C0350L1 is one of a new range of constant current LED Drivers produced by Eaglerise and incorporates a constant current of DC350mA giving 21w of power and is NON dimmable.
This unit can also replace the Eaglerise EIP021C0350LS and LX models and is the choice replacement for the Eaglerise ELP18X1LS.

SKU: EIP021C0350L1

Category: Discontinued Models

Description
Additional information

Model No: EIP021C0350L1
Input Voltage: 220 – 240v – 50Hz
Output Voltage: 40-60VDC – 72VDC @ No load
Output Current: DC350mA
Output Power: 21w
Protection Degree: IP20
Case Temperature: Max 85 C
Electronic Protection Circuit, Auto Reset Overload and Over Temperature Protection
Safety: EN 61347-1; EN61347-2-13; EN60598-1; EN60598-2-6
EMC: EN55015; EN61547; EN61000-3-2 ; EN61000-3-3

Weight	0.11 kg
Dimensions	115 × 45 × 27 mm
Condition	New
Country Of Manufacture	China
Maximum Wattage	21w
Minimum Wattage	14w
MPN	EIP021C0350L1
Outputs	1
Primary	220 – 240v
Secondary	40-60VDC DC350mA
