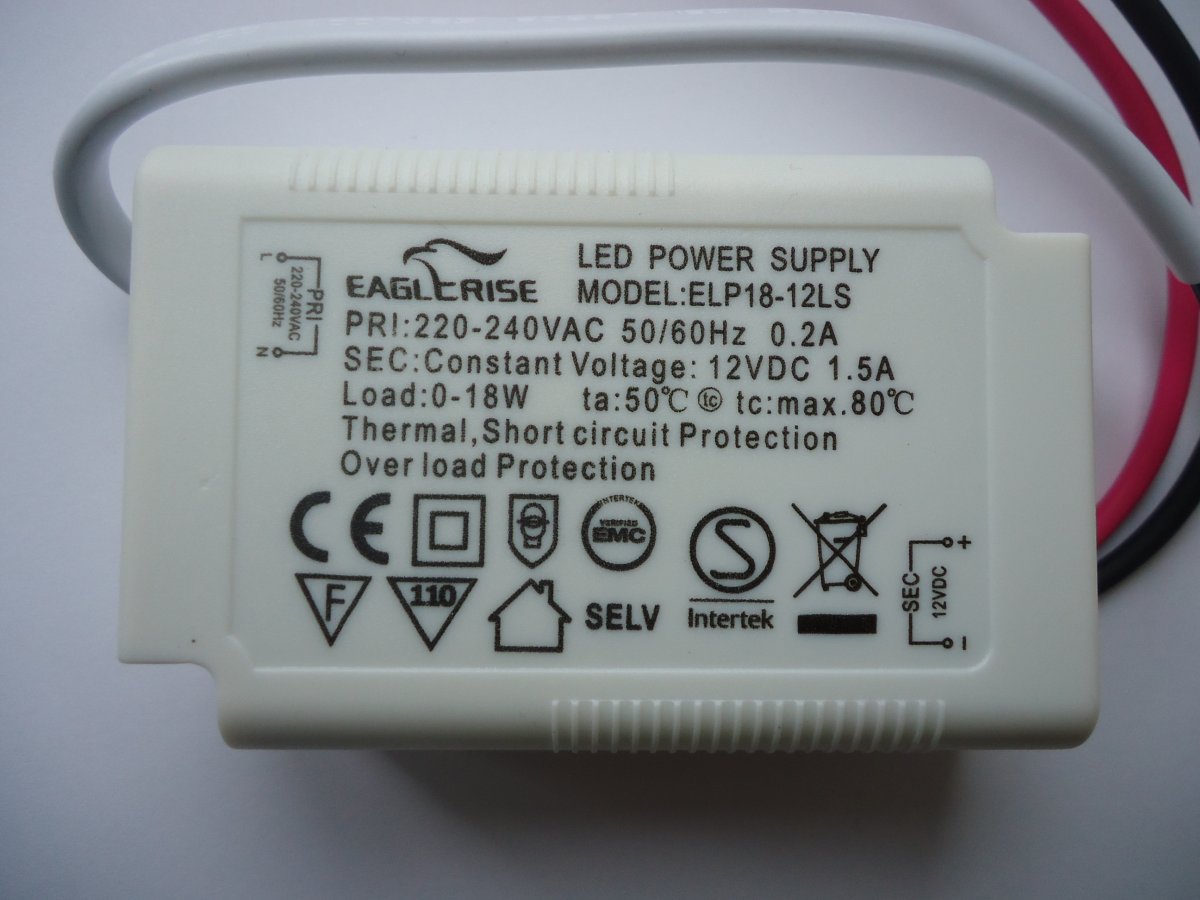

The ELP18-12LS features constant voltage of 12VDC with an output of 18w.
03/10/17 – The ELP18-12LS is now discontinued. An alternative is the newly released Eaglerise SS-18V12.
EMC Norm: EN55015:2006, EN61547:1995+A1:2000 EN61000-3-2:2006, EN61000-3-3:1995+A1:2001+A2:2005
Safety Norm: EN61347-2-13:2006, EN61347-1:2001, EN60598-1:2004+A1:2006
LVD Norm: Low voltage Directive 2006/95/EC
Over temperature protection
Short circuit protection
Protection class: IP20
Input voltage: 220 – 240V AC
Input current: 0.2A
Frequency: 50 – 60Hz
Output current: 1.5A
Output voltage: 12VDC
NON DIMMABLE
Weight | 0.11 kg |
---|---|
Dimensions | 48 × 74 × 24 mm |
Condition | New |
Country Of Manufacture | China |
Maximum Wattage | 18w |
Minimum Wattage | 1w |
MPN | ELP18-12LS |
Outputs | 1 |
Primary | 220 – 240v 50/60Hz 0.2mA |
Secondary | Constant Voltage – DC12V 1.5a |
