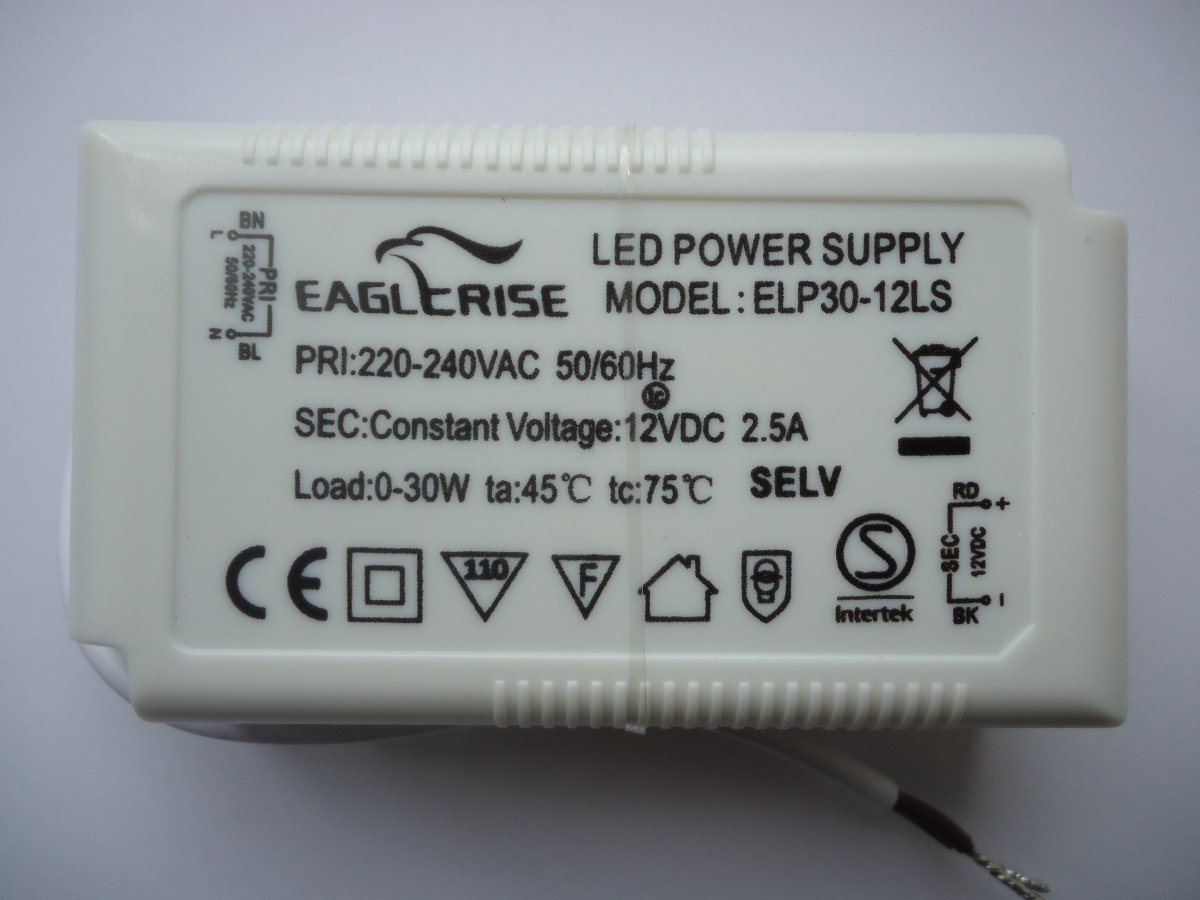

One of Eaglerise’s newest LED Power supply transformers with a rating of up to 30w.
These LED Drivers feature constant voltage of 12VDC.
16/01/17 – This unit has been discontinued. It can be replaced with the Eaglerise EIP020V0120USS, Baohong BELD-3012VL, SELF SLT30-12VL and the Huibolong HLV1230LA. Please check the dimensions of each unit that it will fit inside your light fitting housing.
EMC Norm: EN55015:2006, EN61547:1995+A1:2000 EN61000-3-2:2006, EN61000-3-3:1995+A1:2001+A2:2005
Safety Norm: EN61347-2-13:2006, EN61347-1:2001, EN60598-1:2004+A1:2006
LVD Norm: Low voltage Directive 2006/95/EC
Over temperature protection
Short circuit protection
Protection class: IP20
Input voltage: 220 – 240V AC
Input current: 0.09A
Frequency: 50 – 60Hz
Output current: 2.5A
Output voltage: 12VDC
NON DIMMABLE
Weight | 0.17 kg |
---|---|
Dimensions | 53 × 95 × 33 mm |
Condition | New |
Country Of Manufacture | China |
Maximum Wattage | 30w |
Minimum Wattage | 1w |
MPN | ELP30-12LS |
Outputs | 1 |
Primary | 220 – 240v 50/60Hz 0.02mA |
Secondary | Constant Voltage – DC12V 2.5a |
