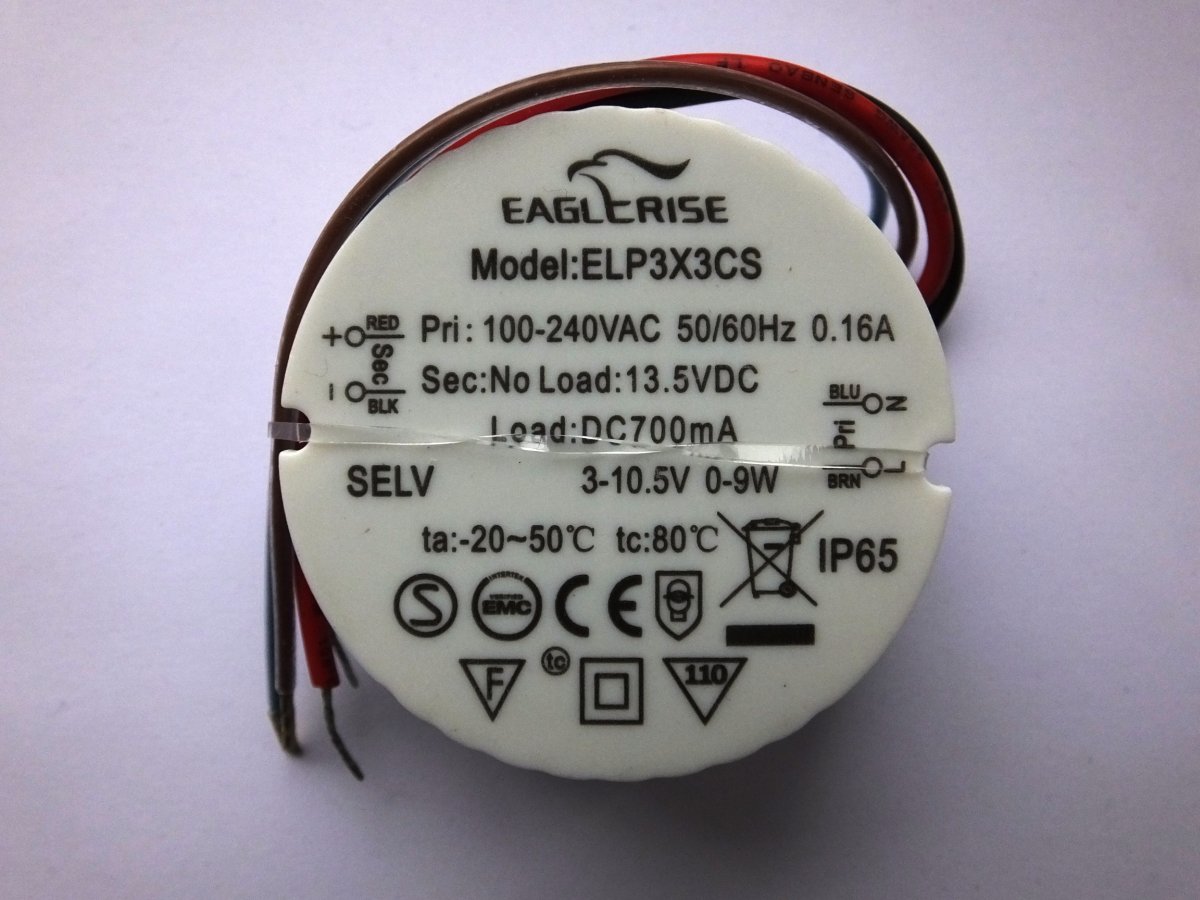

Name: EAGLERISE ELP3X3CS LED DRIVER CONSTANT CURRENT (DISCONTINUED)
SKU: ELP3X3CS
Availability: OutOfStock

Product Information

£0.00

One of Eaglerise’s newest LED Power supply transformers with a rating of up to 9w.
These LED Drivers feature a constant current of 700mA at 9w.

05/02/24 – This model is now discontinued.

SKU: ELP3X3CS

Category: Discontinued Models

Description
Additional information

Input voltage: 100 – 240VAC
Input current: 0.16A
Frequency: 50 – 60Hz
Constant current: DC700mA
No Load: 13.5VDC
Output: 0 – 9w
Not Dimmable
Overload, Temperature and Short Circuit protection
Protection class: IP65
EMC Norm: EN55015, EN61547, EN61000-3-2, EN61000-3-3 LVD: EN61347-1, EN61347-2-13

Weight	0.11 kg
Dimensions	54 × 23 mm
Condition	New
Country Of Manufacture	China
Maximum Wattage	9w
Minimum Wattage	1w
MPN	ELP3X3CS
Outputs	1
Primary	100 – 240v 50/60Hz 0.16A
Secondary	Constant Current – DC700mA
