One of Eaglerise’s newest drivers in their LED range.
Capable of 4×3 watt LED running in series.
This is a NON dimmable LED driver.
25/07/19 – This model is now discontinued. It can be replaced with the SELF SLT12-700IF LED Driver.

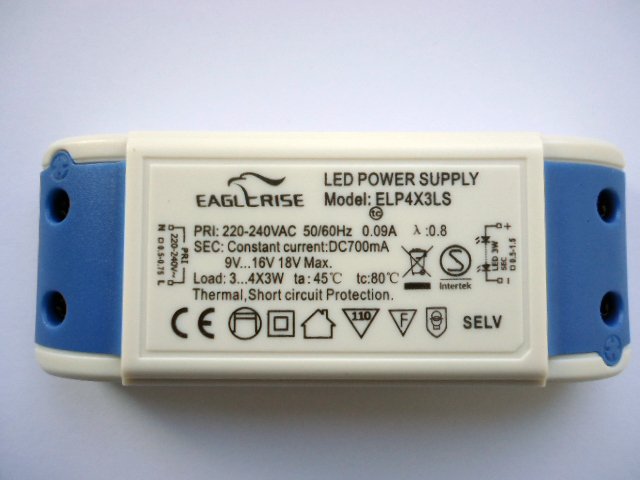

Model: ELP4X3LS
Input: 220 – 240va
Secondary: 700mA
Output: 12w
LVD Directives:- EN61347-2-13:2006, BS EN61347-1:2001.
EMC Directives:- EN55015:2006, EN61547:1995+A1:2000, EN61000-3-3:1995+A1:2001+A2:2005, EN61000-3-2:2006.
Protection Class:- IP20
Insulation Class:- II SELV
Short Circuit Protection and High Temperature Protection built in.
Certification Mark:- SEMKO CE
Weight | 0.11 kg |
---|---|
Dimensions | 45 × 115 × 27.5 mm |
Condition | New |
Country Of Manufacture | China |
Maximum Wattage | 12w |
Minimum Wattage | 9w |
MPN | ELP4x3LS |
Outputs | 1 |
Primary | 220 – 240v |
Secondary | Constant current DC700mA 9-16V |
