£18.99
One of Eaglerise’s newest LED Drivers for 2023.
The SS-18V12 is a 12vDC constant voltage LED Driver with an 18w output and can be used to replace the discontinued ELP18-12LS and the EBP018V0120LS models.

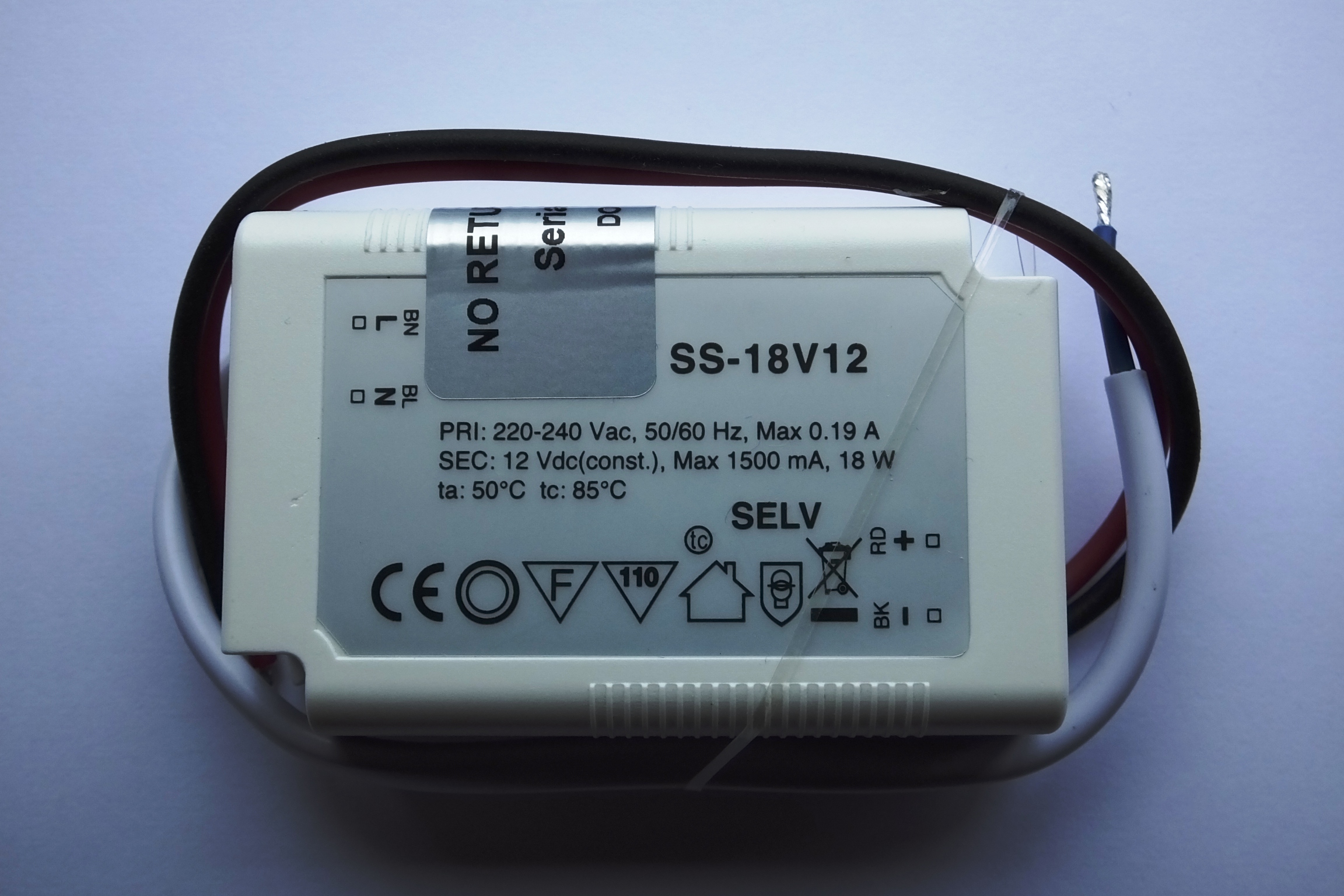

Model: SS-18V12
Input voltage: 220 – 240V AC
Input current: 0.19A
Frequency: 50 – 60Hz
Output current: 1.5A
Output voltage: 12VDC
Output: 18w
Standards (EMC) EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-5, EN 55015, EN 61547.
Standards (LVD) EN 61347-1, EN 61347-2-13.
Over heating / Over load protection
Over Voltage / Short circuit protection
Protection class: IP20
NON DIMMABLE
Weight | 0.11 kg |
---|---|
Dimensions | 48 × 74 × 24 mm |
Condition | New |
Country Of Manufacture | China |
Maximum Wattage | 18w |
MPN | SS-18V12 |
Outputs | 1 |
Primary | 220 – 240v 50/60Hz 0.19A |
Secondary | Constant Voltage – DC12V 1.5a |
