Model: HLV3506BS
Input: 220-240v 50-60Hz
Secondary: 8-18v, 350mA Constant Current
Output: 3-6w
Max Output Voltage (No Load) 21VDC

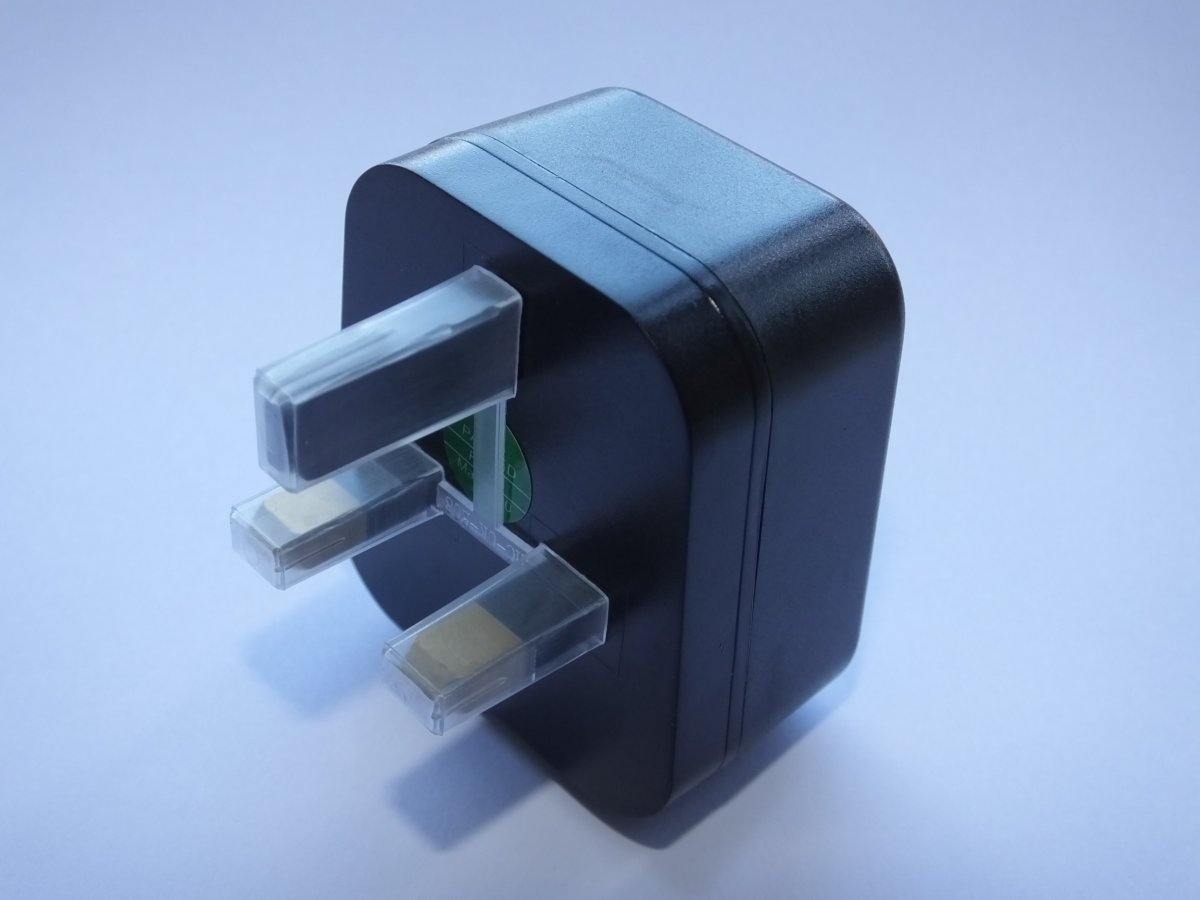

3 pin British Plug
Overload and short circuit protection.
Complies with the latest electrical safety standards for dimmer switch: EN61347-1, EN61347-2-3.
EMC compliance EN55015, EN61000-3-3, EN6100-3-2 and EN61547.

Weight 0.11 kg
Dimensions 55 × 50 × 29 mm
Bulb Type

L.E.D

Condition

New

Country Of Manufacture

China

Dimmable

N/A

Maximum Wattage

6w

Minimum Wattage

3w

MPN

HLV3506BS

Outputs

1

Primary

220 – 240v

Secondary

8 – 18v, 350mA
