£16.99

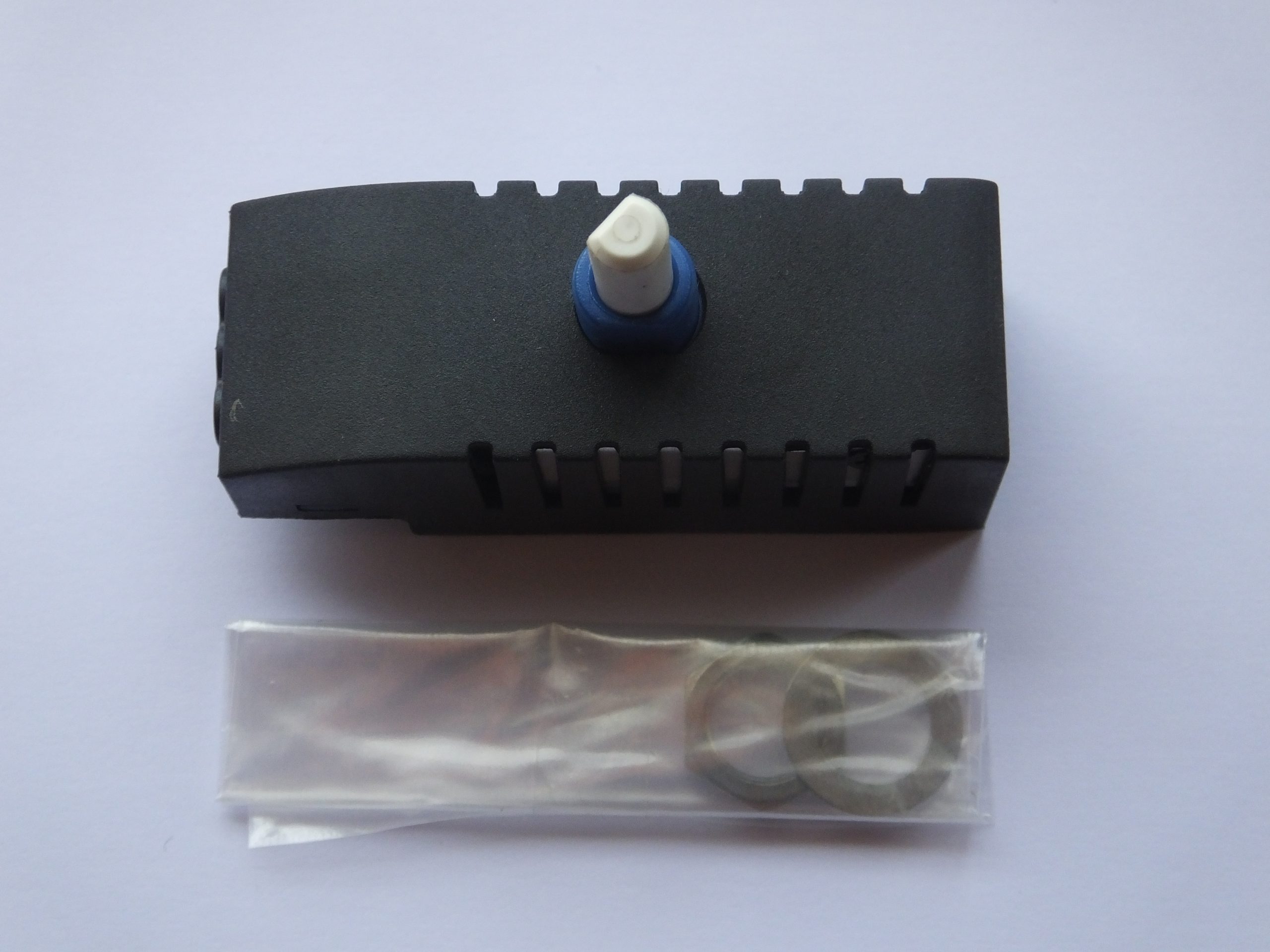

Due to demand we are now stocking the Hytec HY-L400DIM-UK trailing edge dimmer module as used in many Eastern European countries.
This module is suitable for the control of dimmable LED lamps, incandescent lamps, high voltage halogen lamps and electronic transformers with low voltage halogen lamps.
LED Load 10-150W
Halogen Load 10-400w
This module replaces the discontinued Kaoyi DSP-250, DSP-400, DSP-400X and the KD-400BX-1.

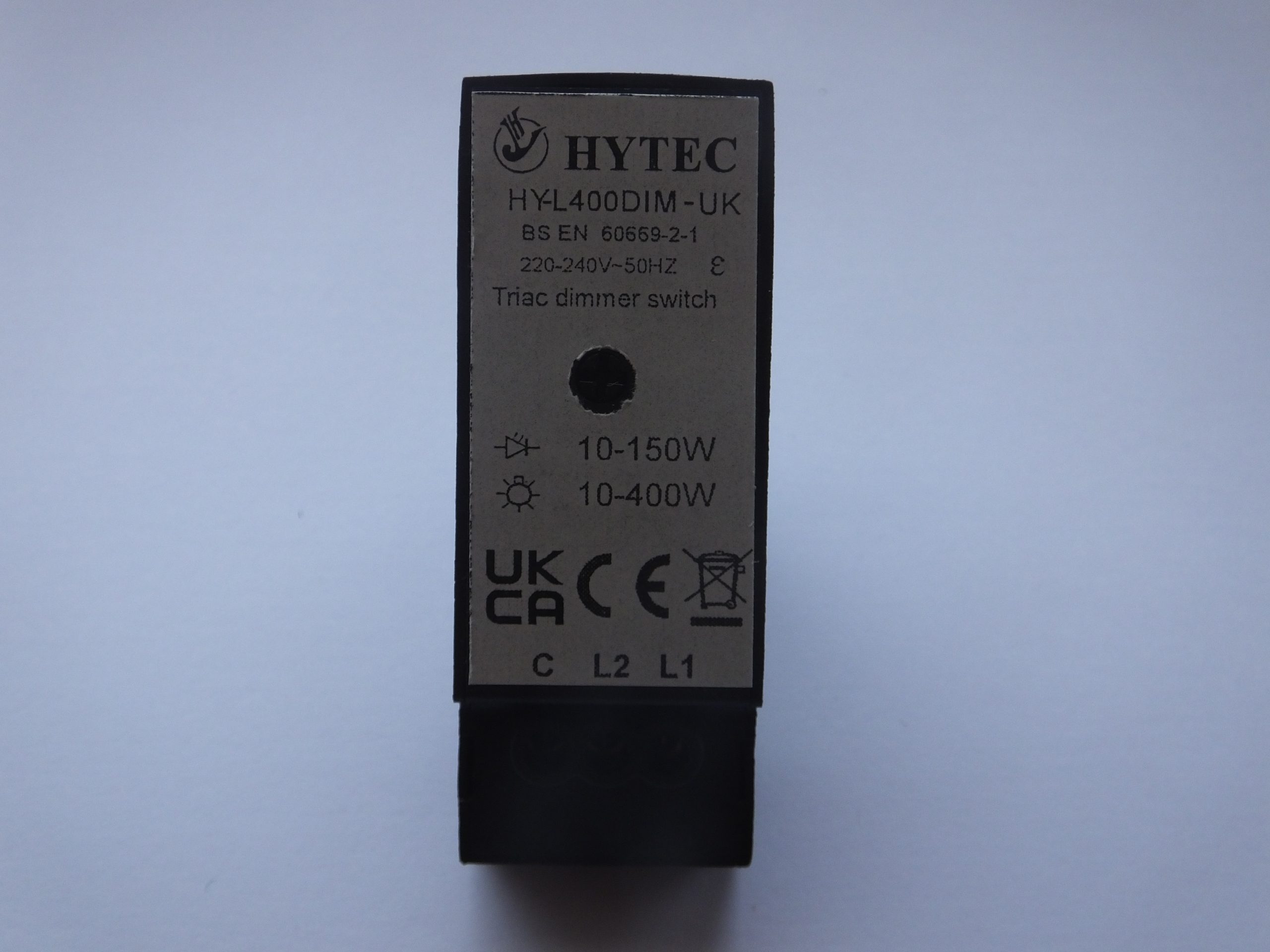

Model: HY-L400DIM-UK
Input: 240v
Output: 240v
Secondary: 10-150w LED, 10-400w Halogen, 2 way
Dimming Method: Trailing Edge
Bulb Type: Halogen, LED, Tungsten
Use: Dimmable Halogen transformers, LED Drivers and Toroidal transformers
Integrated over-temperature protection.
Complies with the latest electrical safety standards for dimmer switch:EN60669-2-1:2000.
EMC compliance: EN55015, EN61000 and EN61547.
UKCA marked.
Weight | 0.1 kg |
---|---|
Dimensions | 64 × 24 × 24 mm |
