Jindel have been quiet for some years concentrating on the Chinese & Taiwan wholesale lighting market.
Jindel are still producing some of the smallest 12v halogen transformers currently available on the market and now branching into LED Drivers.
Jindel have taken note of our comments regarding a gap in the market for an oblong shaped constant voltage LED driver and have produced the MH-QD range.
Many light fittings are installed with an oblong halogen transformer and circular LED Drivers will simply not fit inside the transformer housing due to their larger diameter……….

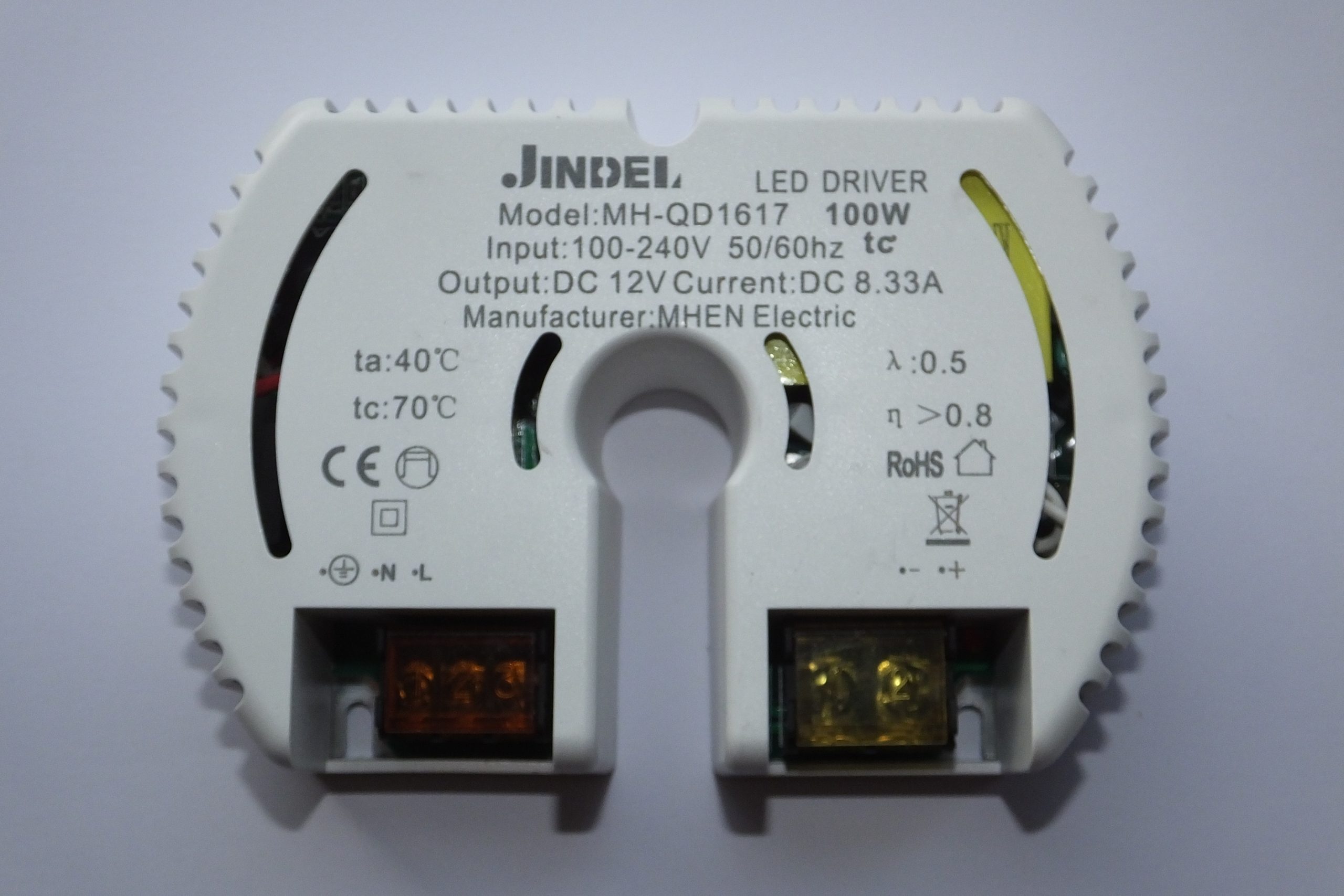

Cue the MH-QD1617 LED Driver
The QD1617 is the only oblong LED Driver currently on the market capable of replacing the Eaglerise SET150CS, SET160CK, SET210CS and the Huibolong HTV160C1 and HTV210C1 halogen transformers.
1) Larger secondary terminal block allows a thicker core wire to be inserted.
2) Red LED light located on the secondary side that illuminates when the LED Driver is powered.
3) 8 separate air vents for increased ventilation when in use.
4) An earthing point is supplied on the primary terminal block.
5) Suitable for the North American market.
6) 5w minimum loading.
7) Large 12mm diameter central hole (M12 studding).
This model is not compatible with halogen light bulbs.
Model: MH-QD1617
Input: 100 – 240v
Secondary: 12v
Output: 100w (LED)
CE Certifcate Approved
Weight | 0.260 kg |
---|---|
Dimensions | 125 × 85 × 31 mm |
Condition | New |
Country Of Manufacture | China |
Dimmable | No |
Maximum Wattage | 100w |
Minimum Wattage | 5w |
MPN | MH-QD1617 |
Outputs | 2 |
Primary | 100 – 240v 50/60Hz |
Secondary | 12v |
