A 50 – 210va self monitoring electronic transformer.
Suitable for controlling low voltage halogen floor lamps in commercial or light industrial installation.
10/02/19 – This product is officially discontinued. The Huibolong HTV210L1 is an alternative but is not a self monitoring unit.
http://www.savemylight.co.uk/transformer-manufacturers/huibolong/htv210l1.html#.XGBFg2kyW00

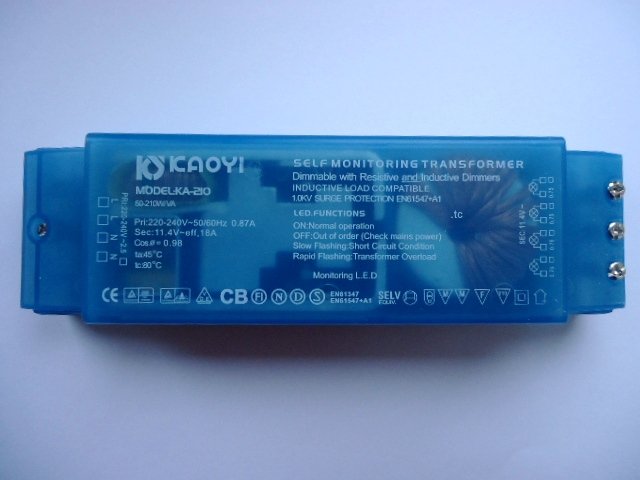

Model: KA210
Input: 220 – 240v
Secondary: 11.5v
Output: 210w
Overload and short circuit protection with self resetting circuit
Complies with the latest electrical safety standards for transformer – EN61347
EMC compliance:- EN55015, EN61000 and EN61547 A1
Patented Self Monitoring technology
Fully dimmable with resistive & inductive dimmers
Auto-reset thermal protection
1.0KV surge protection EN 61547 A1
Flashing LED light indicates status of transformer and whether a fault exists
Weight | 0.2 kg |
---|---|
Dimensions | 47 × 176 × 35 mm |
Condition | New |
Country Of Manufacture | China |
Dimmable | Via Primary |
Maximum Wattage | 210w |
Minimum Wattage | 50w |
MPN | KA210 |
Outputs | 4 |
Primary | 220 – 240v |
Secondary | 12v |
