£16.99
These are so popular with customers for converting mirrors using halogen or ballast transformers to new LED lighting and can also be used with the SELF Touch Dimmers.

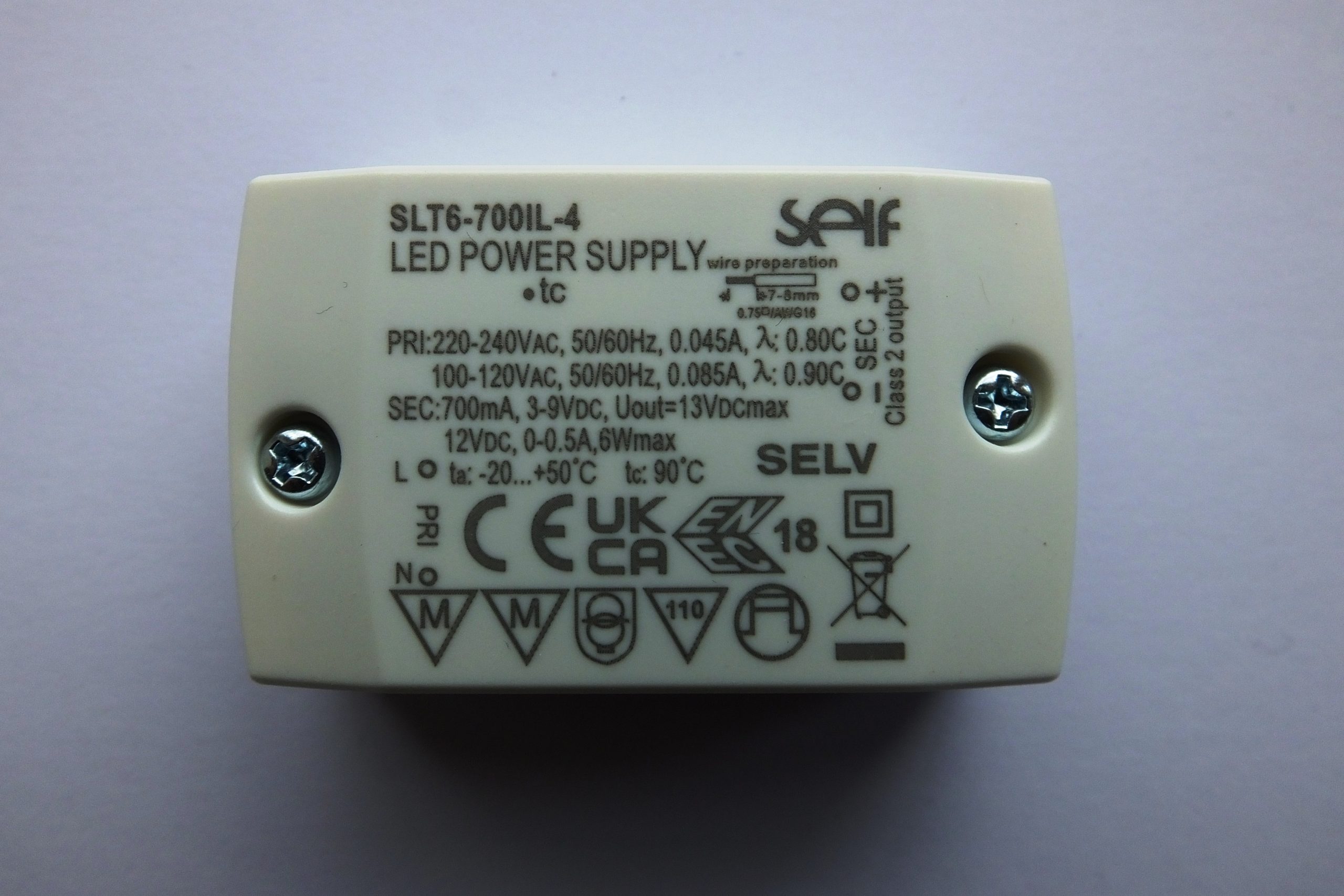

The SLT6-700IL-4 is suitable for:
Constant Voltage 12v lamps rated at 500mA connected in parallel to 0w – 6w
Constant Current 12v lamps rated at 700mA connected in series to 2.1w – 6.3w
The product features a built in protection circuit and will shut down in the event of a fault such as: open circuit, short circuit, over load or over temperature. The unit will restart automatically after the fault has been rectified.
This model is commonly found in Dimplex and other electric fire units to control the lighting.
This is a NON dimmable LED driver.
25/09/22 – The SLT6-700IL-4 can be used to replace the SLT6-700ILS and the Eaglerise EBP006C0700S1.
Input Voltage: 100- 240v – 50Hz
Constant Current Output: 700mA
Constant Voltage Output: 12VDC, max 500mA, 6w
Output Voltage: 3-9VDC
Rated Output Power: 2.1-6.3w (CC) 0-6w (CV)
Protection Degree: IP20
Case Temperature: Max 90 C
Electronic Protection Circuit and Auto Reset Overload and Over Temperature Protection
Weight | 0.11 kg |
---|---|
Dimensions | 35 × 68 mm |
