£17.99
This model is the latest LED micro unit to be released from Huibolong.
There has long been a gap in the market for 7w – 12w micro models as nearly all manufacturers jump from 6w to the popular 12w power band.
However this also means an increase in the case size from 12w onwards to a rectangular casing which means the larger case size will not fit inside smaller housings.
These are small and compact and ideal for light fittings or applications with limited space.

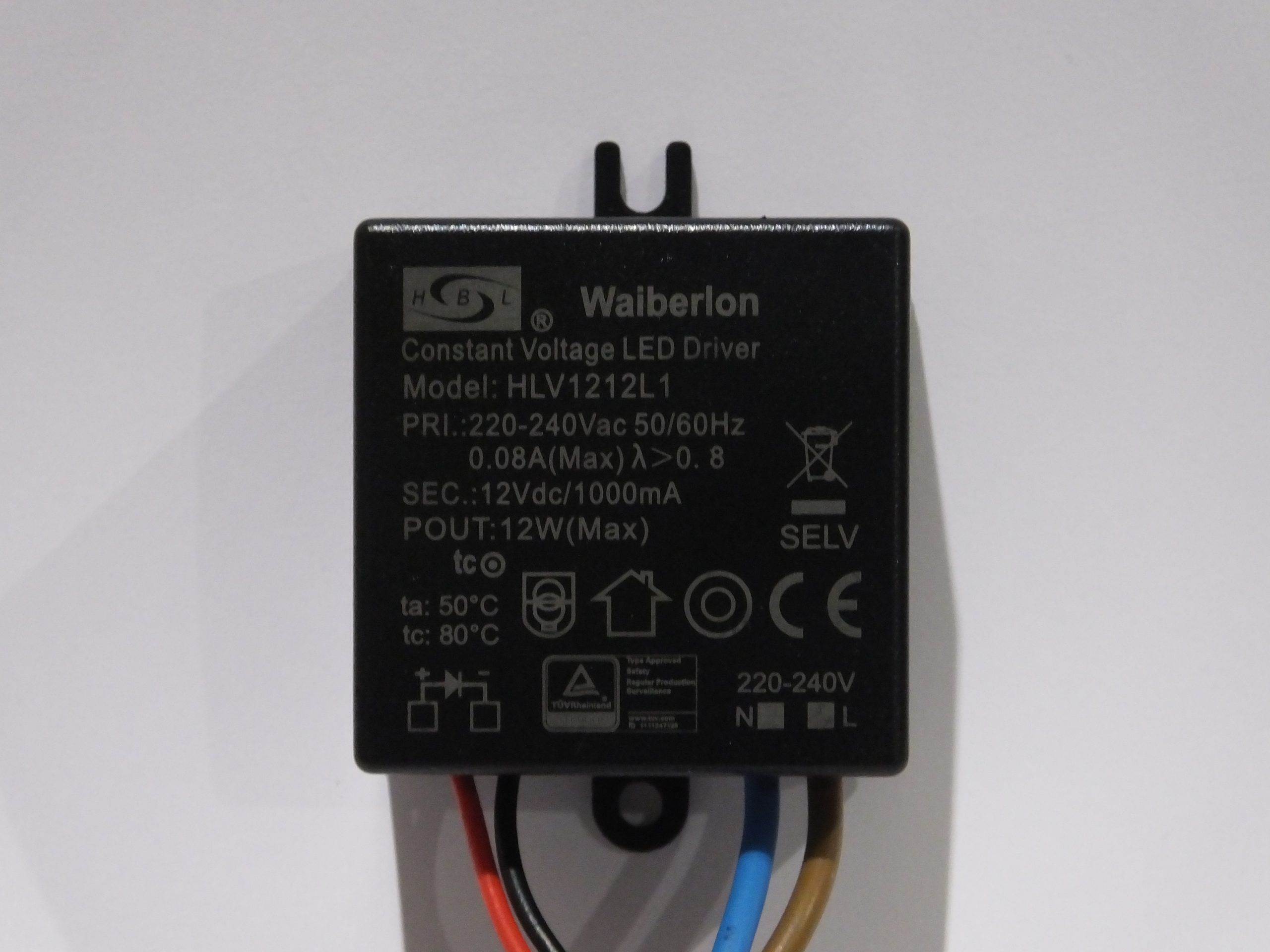

The HLV1212L1 has an output rating of 12w and features a constant voltage of 12Vdc.
Model: HLV1212L1
Input voltage: 220 – 240Vac
Output voltage: 12v 1000mA
Output power: 12w
Dimmable: No
Over temperature, Short circuit protection and Overload protection
EMC Norm: EN55015, EN61547, EN61000-3-2, EN61000-3-3
Safety Norm: EN61347-1, EN6134-2-13
Weight | 0.11 kg |
---|---|
Dimensions | 43 × 43 × 20 mm |
Country Of Manufacture | China |
MPN | HLV1212L1 |
Primary | 220 – 240v 50/60Hz |
Secondary | 12v 1000mA |
Maximum Wattage | 12w |
Outputs | 1 |
