£14.99
Released 01/07/19.
The HLV25008R1 is one of Huibolong’s lowest mA rated, constant current LED drivers currently available on the market.
The low mA rating is critical and made a replacement unit anywhere virtually impossible ….. until now.
This model was designed to replace units contained within light fittings that use the ultra small pin type LED bulbs.
There can be hundreds of these pin lights on a light fitting that a low mA rated unit is required.
We think these are going to be popular due to the low mA rating of the model.

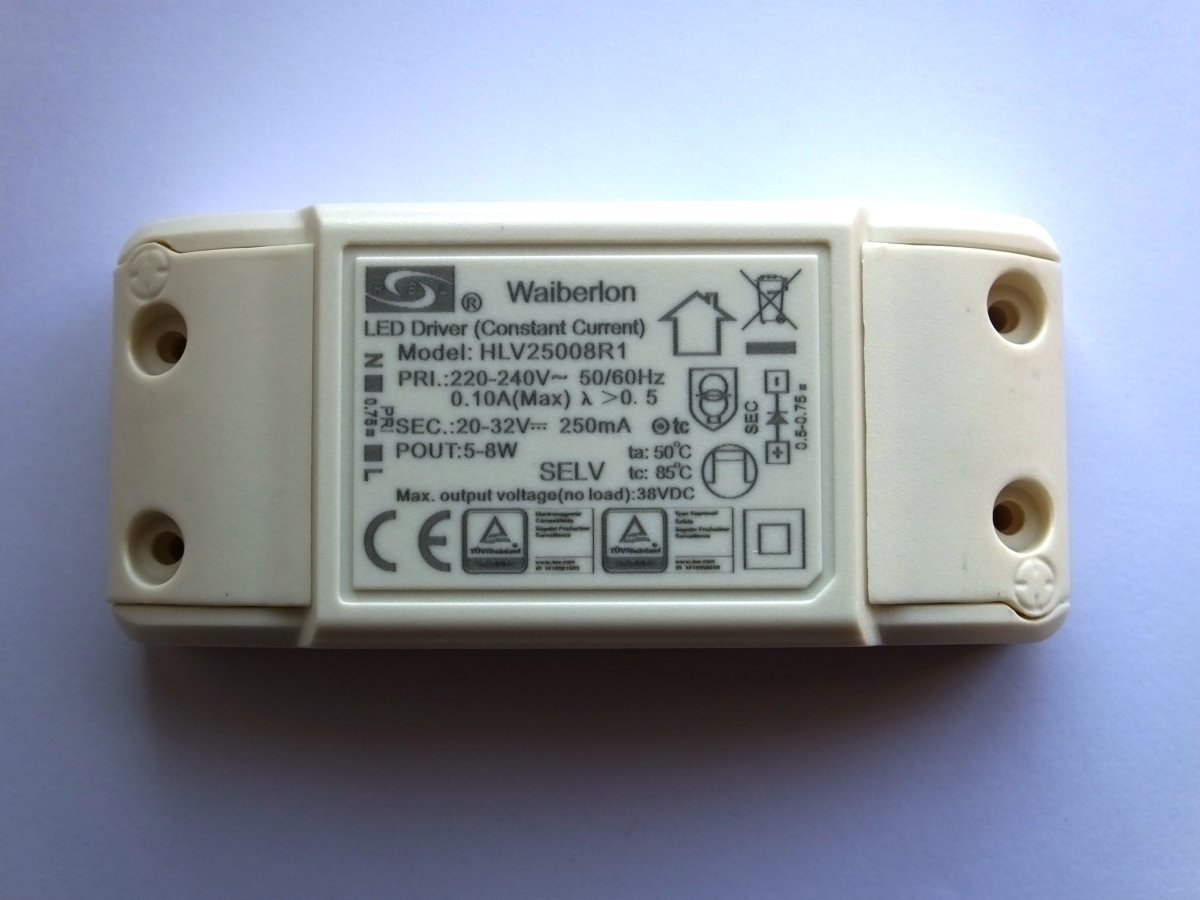

Model: HLV25008R1
Input: 220 – 240vac
Secondary: 250mA
Output: 8w
Output voltage: 20-32v
No Load Voltage: 38VDC
Short circuit protection and Overload protection
EMC Norm: EN55015, EN61547, EN61000-3-2, EN61000-3-3
Safety Norm: EN61347-1, EN6134-2-13
Weight | 0.11 kg |
---|---|
Dimensions | 39 × 88 × 23 mm |
Condition | New |
Country Of Manufacture | China |
Maximum Wattage | 8w |
Minimum Wattage | 5w |
MPN | HLV25008R1 |
Outputs | 1 |
Primary | 220 – 240v |
Secondary | Constant current DC250mA 20-32V |
