£16.49
Released 01/12/19.
The HLV30012R1 is one of Huibolong’s lowest Mah rating, constant current LED drivers currently available on the market.
The low Mah rating is critical and made a replacement unit anywhere virtually impossible ….. until now.
This model was designed to replace units contained within light fittings that use the ultra small pin type LED bulbs.
There can be hundreds of these pin lights on a light fitting that a low Mah rated unit is required.
We think these are going to be popular due to the low Mah rating of the model.

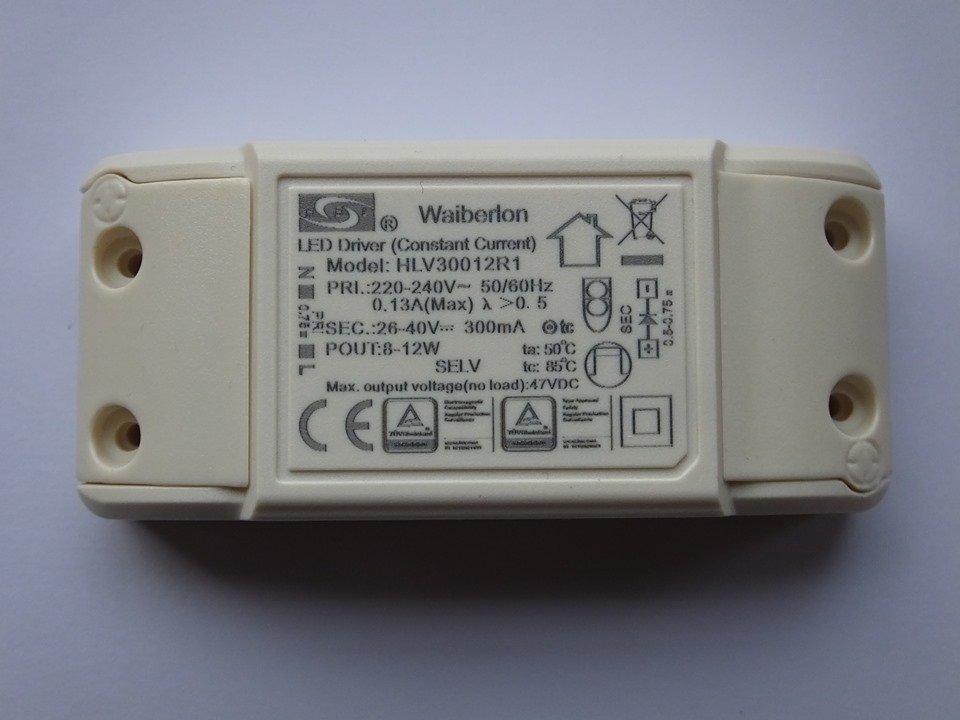

Model: HLV30012R1
Input: 220-240vac
Secondary: 300mA
Output: 12w
Output voltage: 26-40v
No Load Voltage: 47VDC
Short circuit protection and Overload protection
EMC Norm: EN55015, EN61547, EN61000-3-2, EN61000-3-3
Safety Norm: EN61347-1, EN6134-2-13
Weight | 0.11 kg |
---|---|
Dimensions | 39 × 88 × 23 mm |
Condition | New |
Country Of Manufacture | China |
Maximum Wattage | 12w |
Minimum Wattage | 8w |
MPN | HLV30012R1 |
Outputs | 1 |
Primary | 220 – 240v |
Secondary | Constant current DC300mA 26-40V |
