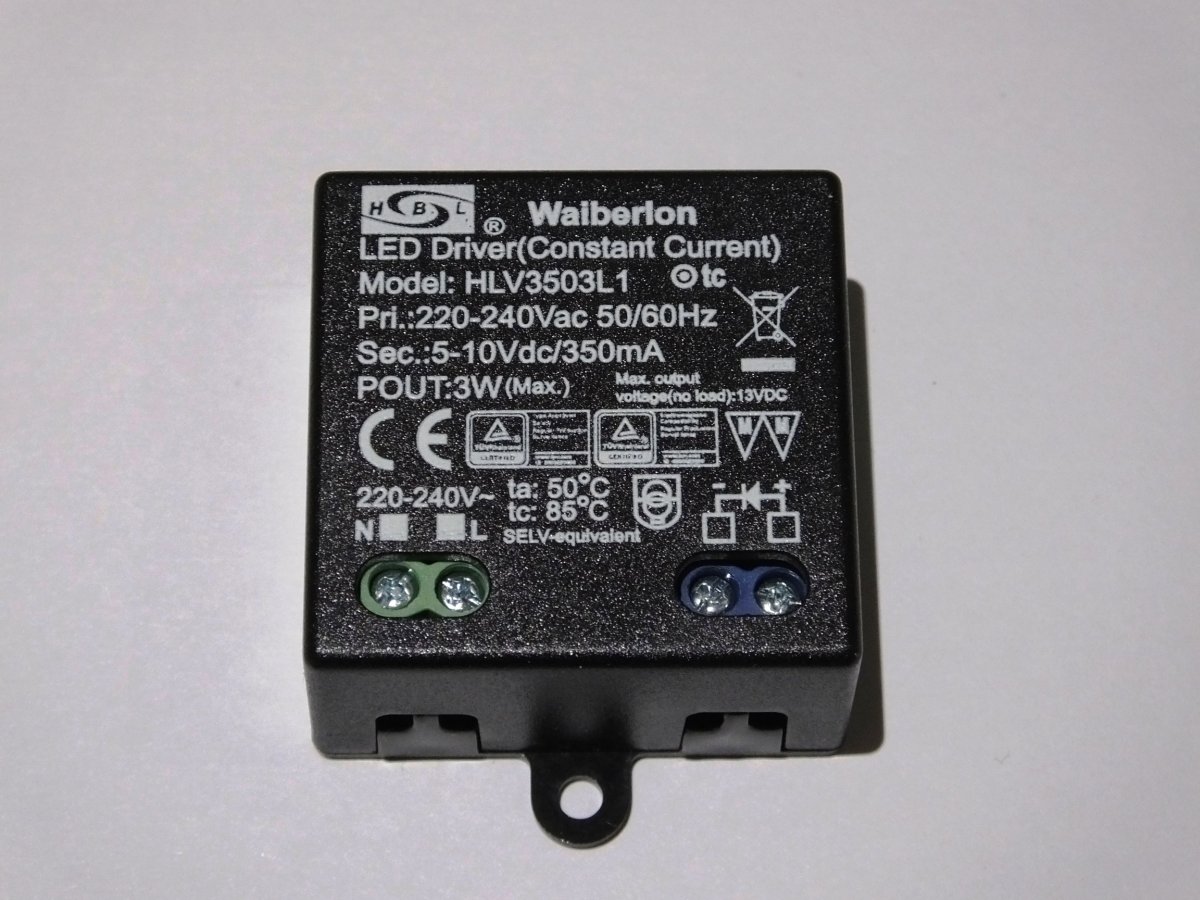

Name: WAIBERLON HLV3503L1 CONSTANT CURRENT LED DRIVER
SKU: HLV3503L1
Price: 14.99 GBP
Availability: InStock

Product Information

£14.99

This model is one of Huibolong’s newest LED Drivers with a rating of 3w and constant current of 350mA.
Small, compact and is ideal for light fittings or applications with limited space.

19/12/16 – This model will replace the Eaglerise ELP3X1LS.
18/01/22 – This model will replace the ES EverShining LD-CU3512-01.
02/09/23 – This model can be used to replace the HLV3512L1.

Brand: Huibolong SKU: HLV3503L1

Categories: 12v Non-Dimmable, LED Drivers

Description
Additional information

Model: HLV3503L1
Output Current: 350mA
Load Voltage: 5 – 10Vdc
No Load Voltage: 13Vdc
Output Power: 3w
Over temperature, Short circuit and Overload protection
Safety Standards: EN61347-2-13, EN61347-1 ã€€ã€€ã€€
EMC: EN55015, EN61000-3-2, EN61000-3-3, EN61547

Weight	0.11 kg
Dimensions	43 × 43 × 20 mm
Condition	New
Country Of Manufacture	China
Maximum Wattage	3w
Minimum Wattage	1w
MPN	HLV3503L1
Outputs	1
Primary	220 – 240v 50/60Hz
Secondary	Constant Current – DC350mA 5 -10v
