£19.99
The HLV50021LA is one of Huibolong’s latest range of LED Drivers.
500mA is an unusual power band which is becoming more popular as LED lighting evolves.
This model gives a 21w LED output.
We can see these being popular as we advance into the LED era.
NOTE: The minimum load for this unit is 15w at 500mAH. If you do not have a minimum of 15w at 500mAH the unit will flash on and off repeatedly!! This is not a fault. Please do not purchase until your electrician has checked your circuit power.
This model can replace the Eaglerise EIP021C0500L1 / LX and the Huibolong HLV50021LD.

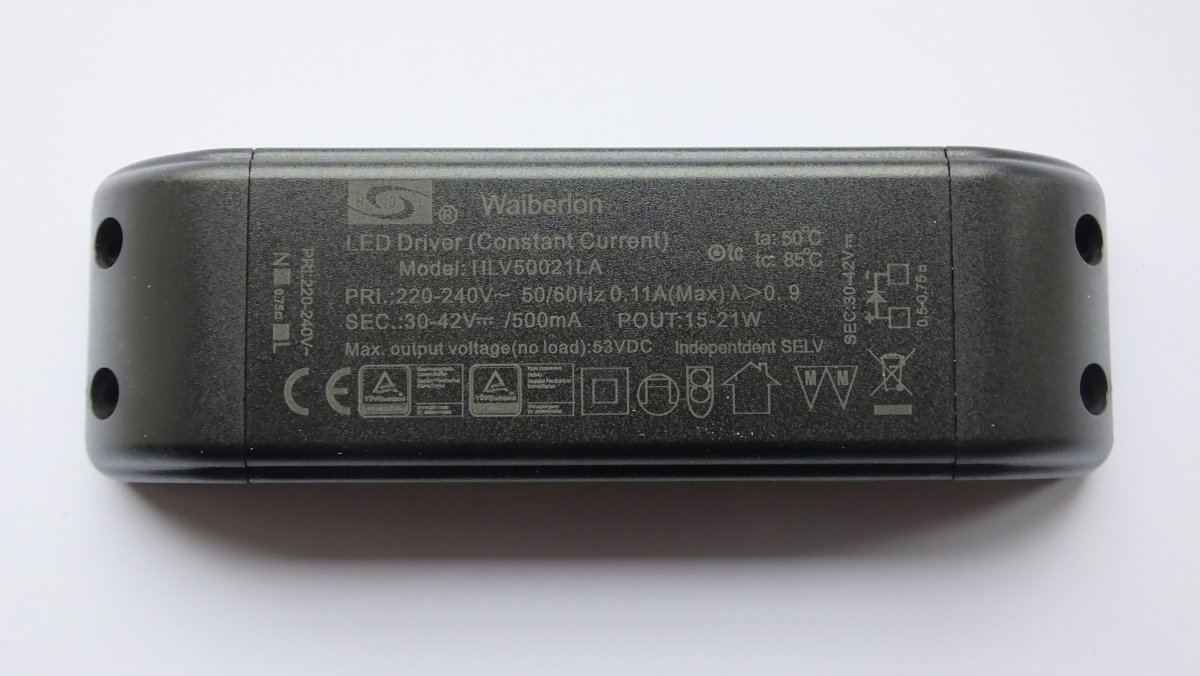

Model: HLV50021LA
Primary: 220 – 240v 50Hz 0.11A
Secondary: 30 – 42v 500mA
No Load Voltage: 53VDC
Output: 15 – 21w
Dimmable: No
EN61347-2-13, EN61347-1, EN55015, EN61000-3-2, EN61000-3-3, EN61547
Weight | 0.11 kg |
---|---|
Dimensions | 131 × 40 × 26 mm |
Condition | New |
Country Of Manufacture | China |
Maximum Wattage | 21w |
Minimum Wattage | 15w |
MPN | HLV50021LA |
Outputs | 1 |
Primary | 220 – 240v |
Secondary | 30 – 42v, 500mA |
