£16.99

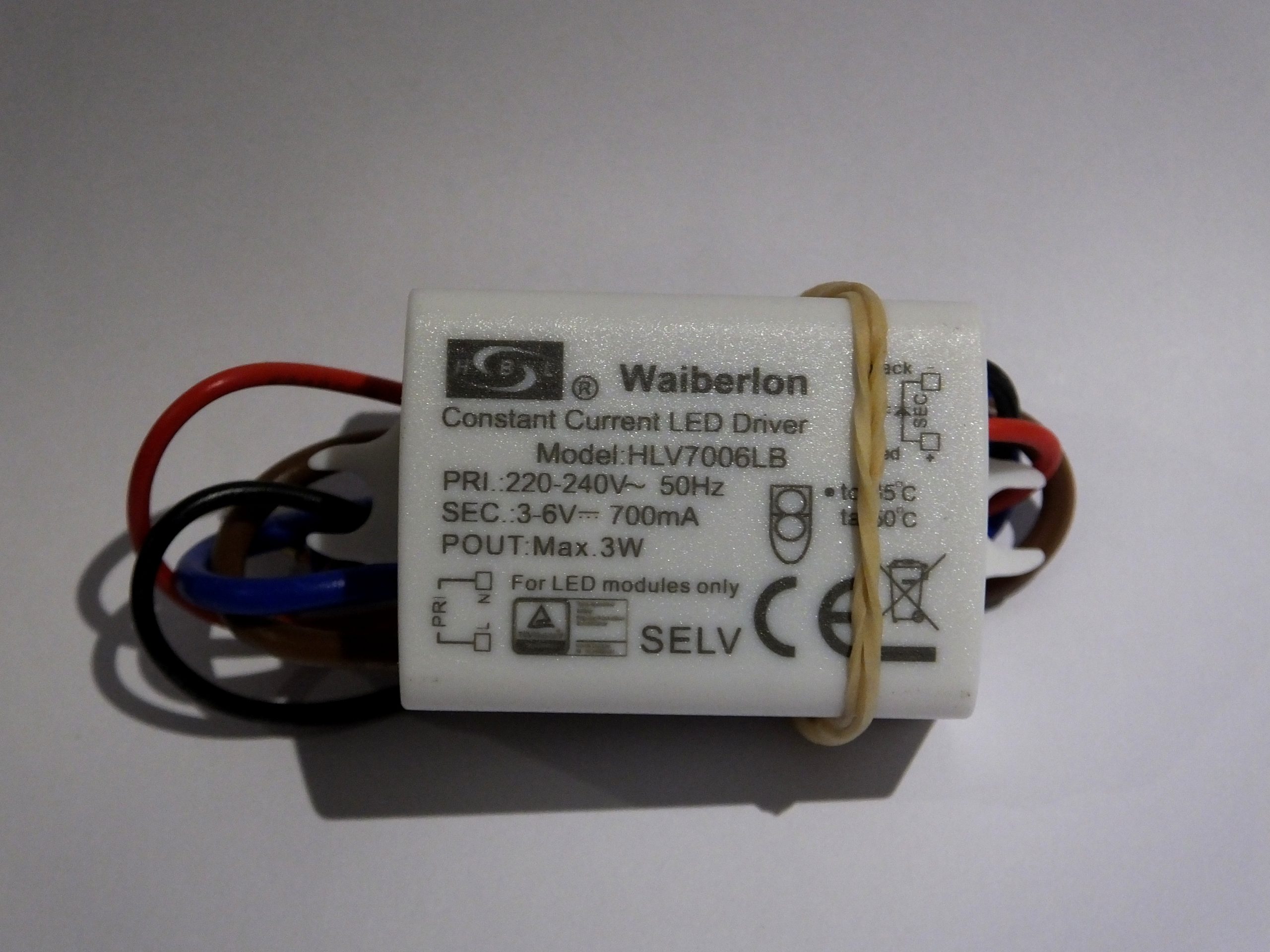

The HLV7006LB is one of Huibolong’s newest compact constant current LED Drivers with an output of 3w at 700mA.
Small, compact and is ideal for light fittings or applications with limited space.
This model can replace the Eaglerise SLP03SS1.
Model: HLV7006LB
Output Current: 700mA
Load Voltage: 3 – 6Vdc
No Load Voltage: 6Vdc
Output Power: 3w
Over temperature, Short circuit and Overload protection
Safety Standards: EN61347-2-13, EN61347-1
EMC: EN55015, EN61000-3-2, EN61000-3-3, EN61547
Weight | 0.11 kg |
---|---|
Dimensions | 37 × 27 × 21 mm |
Condition | New |
Country Of Manufacture | China |
Maximum Wattage | 3w |
MPN | HLV7006LB |
Outputs | 1 |
Primary | 220 – 240v 50/60Hz |
Secondary | Constant Current -700mA, 3-6v |
